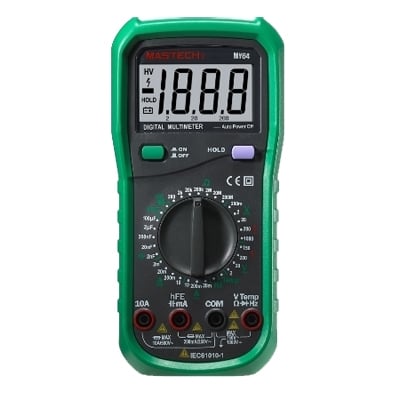

Multimeter MY64, MASTECH
It.№: 340037
SKU: MY64
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 2000 counts
Range Selection
Manual
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2MOhm (±0.8%), 20MOhm (±1.0%), 200MOhm (±6.0%)
Voltage AC
2V/20V/200V (±0.8%), 750V (±1.2%)
Voltage DC
200mV/2V/20V/200V (±0.5%), 1000V (±0.8%)
Current AC
20mA (±1.0%), 200mA (±1.8%), 10A (±3.0%)
Current DC
2mA/20mA (±0.8%), 200mA (±1.5%), 10A (±2.0%)
Capacitance
2nF/20nF/200nF/2uF (±4.0%), 100uF (±6.0%)
Frequency
20KHz (±2.0%)
Temperature
-20~1000°C
Transistor Test
hFE (0-1000)
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple
Battery Type
9V (6F22)
Conformity
IEC 61010-1 CAT III 600V, CAT II 1000V
