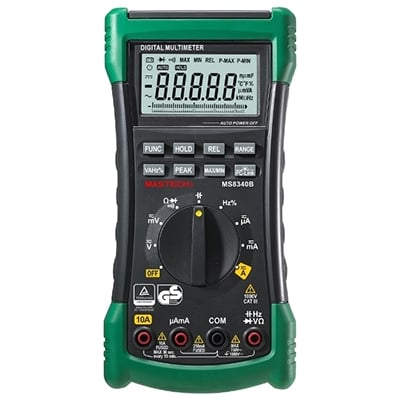

Multimeter MS8340B, MASTECH
It.№: 340174
SKU: MS8340B
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Out of stock
Delivery policy
1+ qty
121.00
€
3+ qty
96.40
€
5+ qty
89.90
€
8+ qty
83.40
€
Add to Favorites
Your favourite products
Details
Display
LCD 22000 counts
Back Light
YES
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
220/2.2K/22K/220KOhm (±0.8%), 2.2/220MOhm (±1%)
Diode Test
YES
Voltage AC
220mV/2.2V/22V/220V/700V (±0.8%)
Voltage DC
220mV (±0.05%), 2.2V/22V/220V/1000V (±0.1%)
Current AC
220uA/2200uA/22/220mA/10A (±1.8%)
Current DC
220uA/2200uA/22mA (±1.5%), 220mA/10A (±1.0%)
Capacitance
22nF/220nF/2.2uF/22uF/220uF/2.2mF/220mF (±5.0%)
Frequency
0~220MHz (±0.2%)
Relative mode
REL funcion
Min. / Max. Value
YES
Duty Cycle
YES
Network integrity
USB
Power Off
Auto, Manual
Conformity
IEC 1010-1 CAT III 1000V
