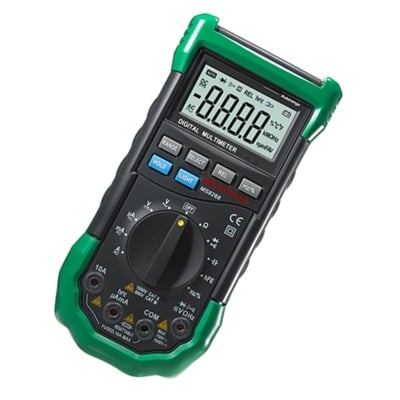

Multimeter MS8268, MASTECH
It.№: 340035
SKU: MS8268
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 4000 counts
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
400/4K/40K/400K/4MOhm (±1.2%), 40MOhm (±2.0%)
Voltage AC
400mV (±3.0%), 4V/40V/400V (±0.8%), 750V (±1.0%)
Voltage DC
400mV/4V/40V/400V (±0.7%), 1000V (±0.8%)
Current AC
400uA/4000uA/40mA/400mA (±1.5%), 10A (±3.0%)
Current DC
400uA/4000uA/40mA/400mA (±1.2%), 10A (±2.0%)
Capacitance
4nF (±5.0%), 40nF/400nF/4uF/40uF/200uF (±3.0%)
Frequency
10Hz/100Hz/1KHz/10KHz/100KHz/200KHz (z±2.0%)
Transistor Test
hFE (0-1000)
Relative mode
REL funcion
Duty Cycle
5~99 (±2.0) %
Power Off
Auto, Manual
Accessories
Test leads, socket MS3206
Battery Type
3х 1.5V (AAA)
Conformity
IEC 1010-1 CAT III 600V, CAT II 1000V
