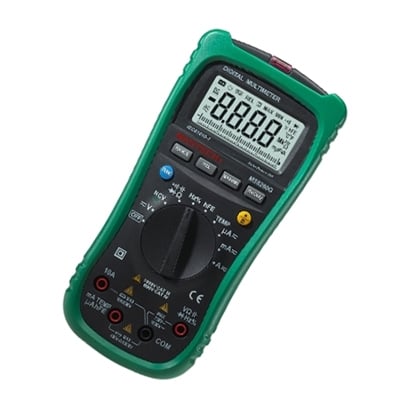

Multimeter MS8260G, MASTECH
It.№: 340081
SKU: MS8260G
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 4000 counts
Back Light
YES
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
400/4K/40K/400K/4MOhm (±0.8%), 40MOhm (±1.0%)
Voltage AC
400mV (±2.0%), 4V/40V/400V (±0.8%), 750V (±1.0%)
Voltage DC
400mV/4V/40V/400V (±0.5%), 1000V (±0.8%)
Current AC
400uA/4000uA/40mA/400mA (±1.5%), 4A/10A (±2.0%)
Current DC
400uA/4000uA/40mA/400mA (±0.8%), 4A/10A (±1.2%)
Capacitance
40nF/400nF/4uF/40uF/400uF/4000uF (±4.0%)
Frequency
10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz (±0.1%)
Temperature
-20~0°C (±5.0%), 1~400°C (±1.0%), 401~1000°C (±2.0%)
Transistor Test
hFE (0-1000)
Voltage Detection
Non-contact (NCV)
Min. / Max. Value
YES
Duty Cycle
1~99 (±2.0) %
Segment indication
Bar Graph
Power Off
Auto, Manual
Accessories
Test leads, socket MS3206
Battery Type
9V (6F22)
Conformity
IEC 61010-1 CAT IV 600V, CAT III 1000V
