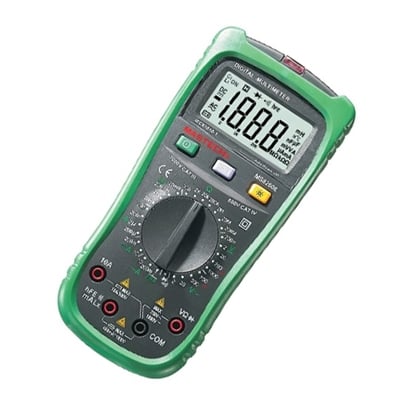

Multimeter MS8260E, MASTECH
It.№: 340080
SKU: MS8260E
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 2000 counts
Back Light
YES
Range Selection
Manual
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2MOhm (±0.8%), 20MOhm (±1.0%), 200MOhm (±5.0%)
Voltage AC
2V/20V/200V (±0.8%), 750V (±1.2%)
Voltage DC
200mV/2V/20V/200V (±0.5%), 1000V (±0.8%)
Current AC
200mA (±1.8%), 10A (±3.0%)
Current DC
200mA (±1.5%), 10A (±2.0%)
Capacitance
20nF/200nF/2uF (±4.0%), 200uF (±5.0%)
Inductance
2mH/20mH/200mH/2H/20H (±3.0%)
Transistor Test
hFE (0-1000)
Other Detection
Non-contact voltage detection
Power Off
Auto, Manual
Accessories
Test leads, socket MS3206
Battery Type
9V (6F22)
Conformity
IEC 61010-1 CAT IV 600V, CAT III 1000V
