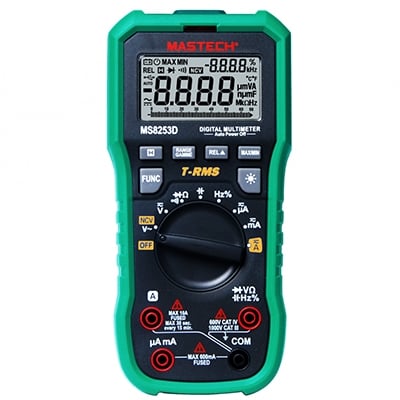

Multimeter MS8253D, MASTECH
It.№: 340178
SKU: MS8253D
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Out of stock
Delivery policy
1+ qty
56.80
€
3+ qty
50.50
€
5+ qty
44.50
€
8+ qty
41.40
€
12+ qty
38.40
€
Add to Favorites
Your favourite products
Details
Display
LCD 6600 counts
Back Light
YES
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
660/6.6K/66K/660KOhm/6.6MOhm (±0.8%), 66MOhm (±1.5%)
Diode Test
YES
Voltage AC
660mV (±1.5%), 6.6V/66V (±1.2%), 660V/1000V (±1.0%)
Voltage DC
660mV (±0.8%), 6.6V/66V/660V/1000V (±0.5%)
Current AC
660uA/6600uA/66mA/660mA (±1.5%), 10A (±3.0%)
Current DC
660uA/6600uA/66mA/660mA (±1.0%), 10A (±2.0%)
Capacitance
6.6nF (±4.0%), 66nF/660nF/6.6uF/66uF/660uF (±3.0%), 6.6mF/66mF (±4.0%)
Frequency
66Hz/660Hz/6.6KHz/66KHz/660KHz/6.6MHz/66MHz (±1.5%)
Voltage Detection
Non-contact (NCV)
Relative mode
REL funcion
Min. / Max. Value
YES
Duty Cycle
YES
Segment indication
Bar Graph
Network integrity
USB
Power Off
Auto, Manual
Accessories
Test leads, USB cable, Software
Battery Type
9V (6F22)
Conformity
CAT III 1000V CAT IV 600V CE (EMC+LVD) ETL
