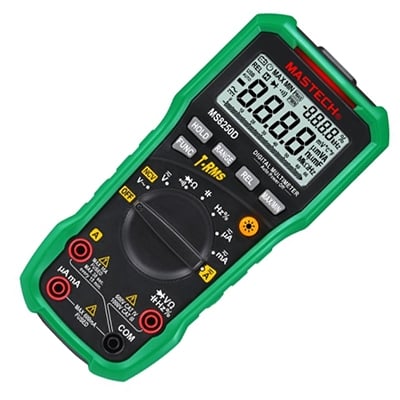

Multimeter MS8250D, MASTECH
It.№: 340072
SKU: MS8250D
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Out of stock
Delivery policy
1+ qty
62.40
€
3+ qty
55.50
€
5+ qty
49.00
€
8+ qty
45.70
€
12+ qty
42.30
€
Add to Favorites
Your favourite products
Details
Display
LCD 6599 counts
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
660/6.6K/66K/660KOhm/6.6MOhm (±0.8%), 66MOhm (±1.5%)
Voltage AC
660mV (±1.5%), 6.6V/66V (±1.2%), 600V/1000V (±1.0%)
Voltage DC
660mV (±0.8%), 6.6V/66V/660V/1000V (±0.5%)
Current AC
660uA/6600uA/66mA/660mA (±1.5%), 10A (±3.0%)
Current DC
660uA/6600uA/66mA/660mA (±1.0%), 10A (±2.0%)
Capacitance
6.6nF (±4.0%), 66nF/660nF/6.6uF/66uF/660uF (±3.0%), 6.6mF/66mF (±4.0%)
Frequency
66Hz/660Hz/6.6KHz/66KHz/660KHz/6.6MHz/66MHz±1.5% (Hz mode) 66Hz-10Khz (V mode)
Voltage Detection
Non-contact (NCV)
Relative mode
REL funcion
Min. / Max. Value
YES
Duty Cycle
1~99 (±2.0) %
Network integrity
USB
Power Off
Auto, Manual
Accessories
Test leads, USB cable, Software
Battery Type
9V (6F22)
Conformity
IEC 61010-1 CAT III, CAT IV 600V
