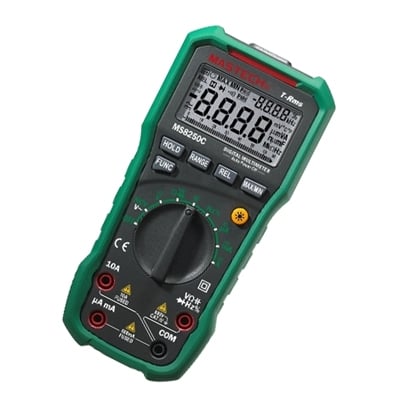

Multimeter MS8250C, MASTECH
It.№: 340071
SKU: MS8250C
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 6599 counts
Back Light
YES
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
660/6.6K/66K/660KOhm/6.6MOhm (±0.8%), 66MOhm (±1.5%)
Voltage AC
600mV (±1.5%), 6.6V/66V (±1.2%), 600V (±1.5%)
Voltage DC
600mV (±0.8%), 6.6V/66V/600V (±0.5%)
Current AC
660uA/6600uA/66mA/660mA (±1.5%), 10A (±3.0%)
Current DC
660uA/6600uA/66mA/660mA (±1.0%), 10A (±2.0%)
Capacitance
6.6nF (±4.0%), 66nF/660nF/6.6uF/66uF/660uF (±3.0%), 6.6mF/66mF (±4.0%)
Frequency
66Hz/660Hz/6.6KHz/66KHz/660KHz/6.6MHz/66MHz (±1.5%)
Voltage Detection
Non-contact (NCV)
Relative mode
REL funcion
Min. / Max. Value
YES
Duty Cycle
10~95 (±2.0) %
Network integrity
USB
Power Off
Auto, Manual
Accessories
Test leads, USB cable, Software
Battery Type
9V (6F22)
Conformity
IEC 61010-1 CAT IV 600V
