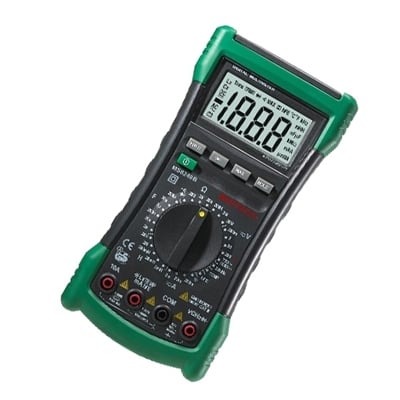

Multimeter MS8240B, MASTECH
It.№: 340064
SKU: MS8240B
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 1999 counts
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2MOhm (±0.8%), 20MOhm (±1.5%)
Voltage AC
200mV/2V/20V/200V (±0.8%), 750V (±1.0%)
Voltage DC
200mV/2V/20V/200V/1000V (±0.5%)
Current AC
2mA/20mA/200mA (±1.5%), 10A (±3.0%)
Current DC
2mA/20mA/200mA (±1.0%), 10A (±2.0%)
Capacitance
2nF/20nF/200nF/2uF/20uF (±4.0%), 200uF (±5.0%)
Frequency
20KHz (±1.5%)
Temperature
-20~0°C (±5.0%), 0~400°C (±1.0%), 400~1000°C (±2.0%)
Inductance
2mH/20mH/200mH/2H/20H (±4.0%)
Transistor Test
hFE (0-1000)
Min. / Max. Value
YES
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple, socket MS3206
Battery Type
4х 1.5V (AA)
Conformity
IEC 61010-1 CAT III 1000V
