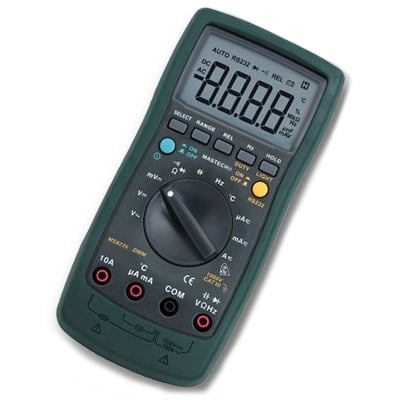

Multimeter MS8226, MASTECH
It.№: 340028
SKU: MS8226
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 3999 counts
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
400/4K/40K/400K/4MOhm (±1.0%), 40MOhm (±2.0%)
Voltage AC
4V/40V/400V (±0.8%), 700V (±1.2%)
Voltage DC
400mV/4V/40V/400V (±0.5%), 1000V (±0.8%)
Current AC
400uA/4000uA/40mA/400mA (±1.5%), 10A (±3.0%)
Current DC
400uA/4000uA/40mA/400mA (±1.2%), 10A (±2.0%)
Capacitance
50nF (±5.0%), 500nF/5uF/50uF/100uF (±3.0%)
Frequency
5Hz/50Hz/500Hz/5KHz/50KHz (±0.2%)
Temperature
-20~1000°C
Relative mode
REL funcion
Duty Cycle
0.1~99.9 %
Network integrity
RS-232C
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple, Cable RS-232C, Software
Battery Type
9V (6F22)
Conformity
IEC 1010-1 CAT III 1000V
