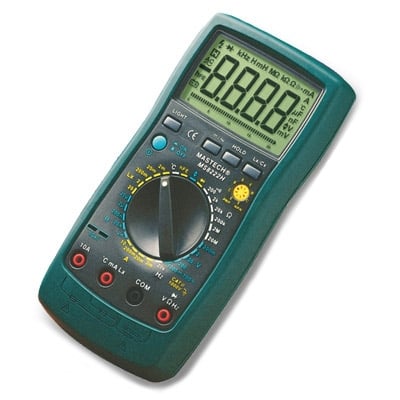

Multimeter MS8222H, MASTECH
It.№: 340026
SKU: MS8222H
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 1999 counts
Range Selection
Manual
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2M/20MOhm (±1.0%)
Voltage AC
200m/2/20/200V (±1.0%), 700V (±1.2%)
Voltage DC
200mV/2V/20V/200V (±0.5%), 1000V (±0.8%)
Current AC
2mA/20mA (±1.2%), 200mA (±2.0%), 10A (±3.0%)
Current DC
2mA/20mA (±1.0%), 200mA (±1.5%), 10A (±2.0%)
Capacitance
2nF/20nF/200nF/2uF/20uF (±4.0%)
Frequency
20KHz (±1.5%)
Inductance
2mH/20mH/200mH/2H/20H (±3.0%)
Transistor Test
hFE (0-1000)
Segment indication
Bar Graph
Other Detection
Logic level test
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple
Battery Type
9V (6F22)
Conformity
IEC 1010-1 CAT II 1000V
