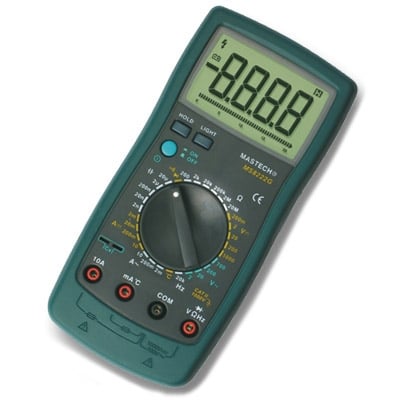

Multimeter MS8222G, MASTECH
It.№: 340025
SKU: MS8222G
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 1999 counts
Range Selection
Manual
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2M/20MOhm (±1.0%)
Voltage AC
2V/20V/200V (±1.0%), 700V (±1.2%)
Voltage DC
200mV/2V/20V/200V (±0.5%), 1000V (±0.8%)
Current AC
2mA/200mA (±2.0%), 10A (±3.0%)
Current DC
2mA/20mA/200mA (±1.2%), 10A (±2.0%)
Capacitance
2nF/20nF/200nF/2uF/20uF (±4.0%)
Frequency
20KHz (±1.5%)
Temperature
-20~1000°C (±3.0%)
Segment indication
Bar Graph
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple
Battery Type
9V (6F22)
Conformity
IEC 1010-1 CAT II 1000V
