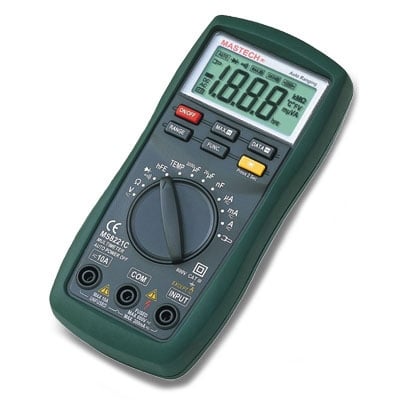

Multimeter MS8221C, MASTECH
It.№: 340021
SKU: MS8221C
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 1999 counts
Range Selection
Auto
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2MOhm (±1.2%), 20MOhm (±2.0%)
Voltage AC
200mV/2V/20V/200V/600V (±0.8%)
Voltage DC
200mV/2V/20V/200V/600V (±0.7%)
Current AC
200uA/2000uA/20mA/200mA (±1.5%), 2A/10A (±3.0%)
Current DC
200uA/2000uA/20mA/200mA (±1.2%), 2A/10A (±2.0%)
Capacitance
20nF/200nF/2uF/20uF/200uF/1000uF (±4.0%)
Temperature
-20~1000°C (±3.0%)
Transistor Test
hFE (0-1000)
Min. / Max. Value
YES
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple, socket MS3203
Battery Type
3х 1.5V (AAA)
Conformity
IEC 1010-1 CAT III 600V
