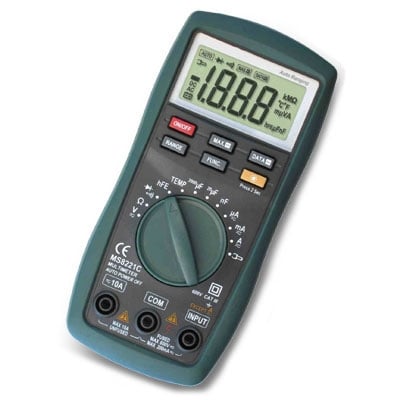

Multimeter MS8221, MASTECH
It.№: 340022
SKU: MS8221
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 1999 counts
Range Selection
Auto
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2M/20MOhm (±1.0%)
Voltage AC
200mV/2V/20V/200V/600V (±0.8%)
Voltage DC
200mV/2V/20V/200V/600V (±0.7%)
Current AC
200uA/2000uA/20mA/200mA (±1.5%), 2A/10A (±3.0%)
Current DC
200uA/2000uA/20mA/200mA (±1.2%), 2A/10A (±2.0%)
Temperature
-20~0°C (±5.0%), 0~400°C (±1.0%), 400~1000°C (±2.0%)
Transistor Test
hFE (0-1000)
Battery Test
1.5V (50mA), 3V (30mA), 9V (12mA)
Min. / Max. Value
YES
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple, socket MS3204
Battery Type
3х 1.5V (AAA)
Conformity
IEC 1010-1 CAT III 600V
