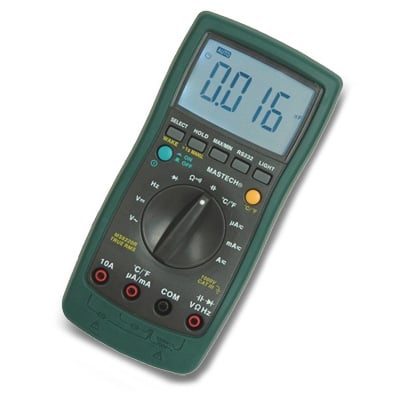

Multimeter MS8220R, MASTECH
It.№: 340019
SKU: MS8220R
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 5999 counts
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
600/6K/60K/600K/6MOhm (±1.0%), 60MOhm (±1.5%)
Voltage AC
600mV/6V/60V/600V (±0.8%), 700V (±1.0%)
Voltage DC
600mV/6V/60V/600V (±0.5%), 1000V (±0.8%)
Current AC
600uA/6000uA/60mA/600mA (±1.5%), 10A (±2.0%)
Current DC
600uA/6000uA/60mA/600mA (±1.2%), 10A (±1.5%)
Capacitance
6nF (±1.8%), 60nF/600nF/6uF (±1.0%), 60uF/600uF/6mF (±1.5%)
Frequency
6000Hz/60KHz/600KHz/6MHz/10MHz/60MHz (±0.5%)
Temperature
-40~500°C (±2.0%), 501~1000°C (±2.9%)
Relative mode
REL funcion
Min. / Max. Value
YES
Network integrity
RS-232
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple, Cable RS-232, Software
Battery Type
9V (6F22)
Conformity
IEC 61010-1 CAT III 1000V
