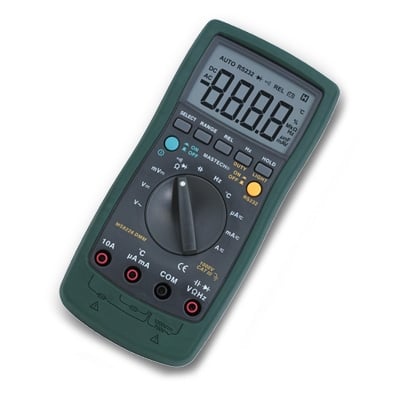

Multimeter MS8218, MASTECH
It.№: 340017
SKU: MS8218
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 50000 counts
Range Selection
Manual/Auto
Continuity Test
YES (buzzer)
Resistance
500/5K/50K/500K/5MOhm (±0.1%), 50MOhm (±0.5%)
Voltage AC
50mV/500mV/5V/50V/500V/1000V (±0.5%)
Voltage DC
50mV/500mV/5V/50V/500V/1000V (±0.03%)
Current AC
500uA/5000uA/50mA/500mA/5A (±0.75%), 10A (±1.5%)
Current DC
500uA/5000uA/50mA/500mA/5A/10A (±0.15%)
Capacitance
50nF/500nF/5uF/50uF (±1.0%), 500uF/5000uF (±2.0%)
Frequency
5Hz/5MHz (±0.006%) logic 2V/5V Vpp, 10Hz/200KHz (±0.006%) linear
Relative mode
REL funcion
Min. / Max. Value
YES
Duty Cycle
10~90 %
Network integrity
RS-232C
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple, Cable RS-232C
Battery Type
6х 1.5V (AAA)
Conformity
IEC 1010-1 CAT III 1000V
