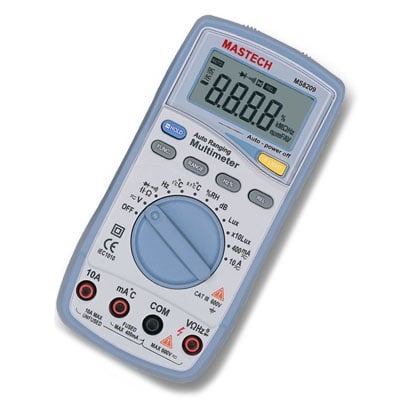

Multimeter MS8209, MASTECH
It.№: 340010
SKU: MS8209
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 3999 counts
Range Selection
Auto
Continuity Test
YES (buzzer)
Resistance
400/4K/40K/400K/4MOhm (±1.2%), 40MOhm (±2.0%)
Voltage AC
4V/40V/400V/600V (±0.8%)
Voltage DC
400mV/4V/40V/400V/600V (±0.7%)
Current AC
40mA/400mA (±1.5%), 10A (±3.0%)
Current DC
40mA/400mA (±1.2%), 10A (±2.0%)
Capacitance
4nF/40nF/400nF/4uF/40uF/200uF (±3.0%)
Frequency
10Hz/100Hz/1KHz/10KHz/100KHz (±2.0%)
Temperature
-20~400°C (±3.0%), -20~1000°C (±3.0%)
Ambient Light
4000Lux/ 40000 Lux (±5.0%)
Sound Level
35~100 (±4%) dB
Humidity
30~95% (±5.0%) RH
Relative mode
REL funcion
Duty Cycle
0.1~99.9 (±3.0) %
Power Off
Auto, Manual
Accessories
Test leads, Thermocouple
Battery Type
9V (6F22)
Conformity
IEC 1010-1 CAT III 600V
