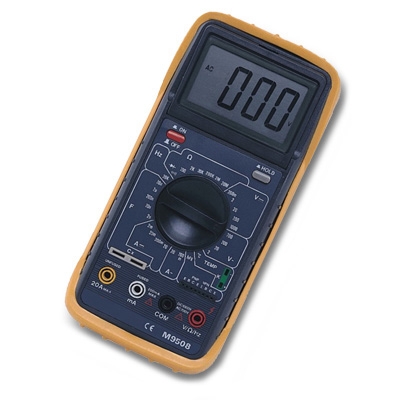

Multimeter M9508, MASTECH
It.№: 339997
SKU: M9508
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 1999 counts
Range Selection
Manual
Continuity Test
YES (buzzer)
Resistance
200/2K/20K/200K/2MOhm (±0.8%), 20MOhm (±1.0%)
Voltage AC
200mV (±1.2%), 2V/20V/200V (±0.8%), 700V (±1.2%)
Voltage DC
200mV/2V/20V/200V (±0.5%), 1000V (±0.8%)
Current AC
200mA (±1.8%), 20A (±3.0%)
Current DC
2mA/20mA (±0.8%), 200mA (±1.2%), 20A (±2.0%)
Capacitance
2nF/20nF/200nF/2uF/20uF (±4.0%)
Frequency
20KHz (±1.5%)
Temperature
-20~0°C (±10%), 0~400°C (±1.0%), 400~1000°C (±2.0%)
Transistor Test
hFE (0-1000)
Accessories
Test leads, Thermocouple
Battery Type
9V (6F22)
Conformity
IEC 1010 CAT II
