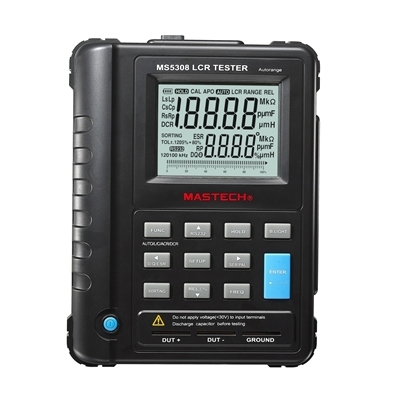

LCR Meter MS5308, MASTECH
It.№: 340098
SKU: MS5308
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Out of stock
Delivery policy
1+ qty
198.00
€
3+ qty
159.00
€
5+ qty
148.00
€
8+ qty
137.00
€
Add to Favorites
Your favourite products
Details
Display
LCD 19999/1999 counts
Back Light
Embedded
Range Selection
Manual/Auto
Resistance (1KHz)
20 (1.0%), 200 (0.3%), 2K (0.3%), 20K (0.3%), 200K (0.5%), 2M (1.0%), 20MOhm (5.0%),
Resistance (10KHz)
20 (1.0%), 200 (0.5%), 2K (0.3%), 20K (0.5%), 200KOhm (1.0%)
Resistance (100KHz)
20 (1.0%), 200 (1.0%), 2K (1.0%), 20KOhm (2.0%)
Resistance (100/120Hz)
200 (1.0%), 2K (0.3%), 20K (0.3%), 200K (0.5%), 2M (1.0%), 20M (1.0%), 200MOhm (2.0%)
Capacitance
Capacitance Test
Capacitance (1KHz)
2000p (1.0%), 20n (1.0%), 200n (0.5%), 2000n (0.5%), 20uF (0.5%), 200u (1.0%), 2000u (1.0%), 200pF (1.0%)
Capacitance (10KHz)
2000pF (1.0%), 20nF (1.0%), 200nF (1.5%), 2000nF (2.0%), 200pF (2.0%)
Capacitance (100KHz)
2000pF (1.0%), 20nF (2.0%), 200nF (5.0%)
Capacitance (100/120Hz)
20nF (1.0%), 200nF (0.5%), 2000nF (0.5%), 20µF (0.5%), 200µF (1.0%), 2000µF (2.0%), 20mF (2.0%)
Inductance
Inductance test
Inductance at 1KHz
2000uH (1.0%), 20mH (0.5%), 200mH (0.5%), 2000mH (1.0%), 20H (1.0%), 200H (2.0%), 2000H (5.0%), 20uH (1.0%)
Inductance (10KHz)
2000uH (0.5%), 20mH (0.5%), 200mH (1.5%), 2000mH (2.0%), 20H (5.0%)
Inductance (100KHz)
20uH (1.0%), 200uH (2.0%), 2000uH (2.0%), 20mH (2.0%), 200mH (5.0%)
Inductance (100/120Hz)
20mH (1.0%), 200mH (0.5%), 2000mH (0.5%), 20H (0.5%), 200H (1.0%), 2000H (1.0%), 20kH (2.0%)
Segment indication
Bar Graph
Relative mode
REL funcion
Data Hold
Data Hold Function
Network integrity
USB
Battery Type
8х 1.5V (AA)
Accessories
USB cable, Software CD
Conformity
IEC61326-1, 61326-2
