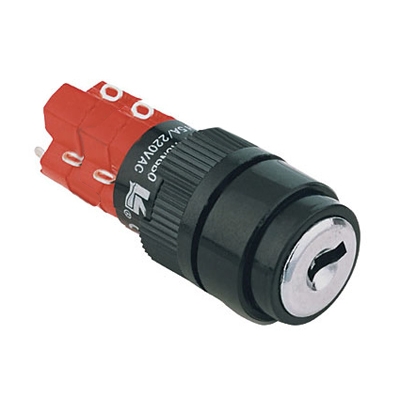

Key Switch M16, OD:18 mm, 2x ON-OFF, flat key, 5A/250V, 2A/24V
It.№: 256860
SKU: LAS1Y-22Y/2
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Switching Position
ON-OFF
Contact Configuration
2NO/2NC
Number of Poles
2
Number of Terminals
6
Keypull
2
Key Type
Flat
Max. Voltage VAC
250 VAC
Max. Voltage VDC
24 VDC
Max. Current 250V
5 A
Contact Resistance
50 Mohm
Mounting
Panel
Installation hole
Ø16 mm
Behind Panel
36,5 mm
Outer Diameter Ø
18 mm
Housing Material
PVC
