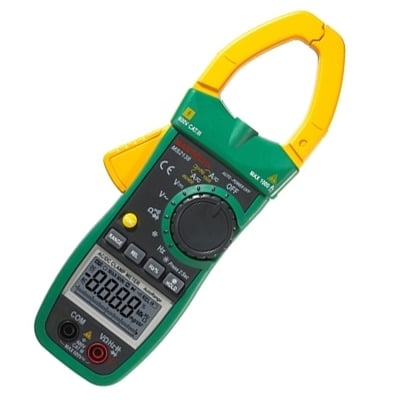

Clamp Meter MS2138, AC/DC, MASTECH
It.№: 340542
SKU: MS2138
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 4000 counts
Range Selection
Auto
Conductor Ø
40 mm
Continuity Test
YES (buzzer)
Resistance
400/4K/40K/400KOhm (±0.8%), 4M/40MOhm (±1.2%)
Voltage AC
4V/40V/400V (±0.8%), 600V (±1.0%)
Voltage DC
400mV (±0.8%), 4V/40V/400V (±0.7%), 600V (±0.8%)
Current AC
40A/400A/1000A (±2.5%)
Current DC
40/400/1000A (±3.0%)
Capacitance
40n/400n/4u/40u/400u/4000uF (±4.0%)
Frequency
10~1KHz (±1.5%) clamp mode, 10Hz~10KHz (±1.5%) test leads
Segment indication
Bar Graph
Battery Type
3х 1.5V (AAA)
Accessories
Test leads
Conformity
IEC 61010-1 & IEC 61010-2-032, CAT III 600V
