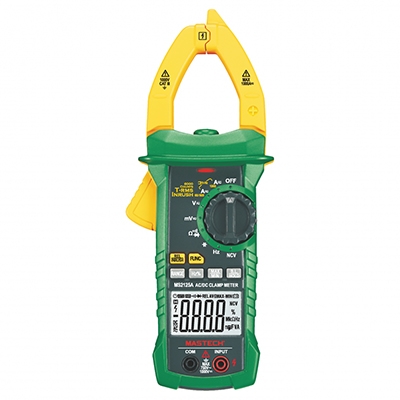

Clamp Meter MS2125A, AC/DC, MASTECH
It.№: 340560
SKU: MS2125A
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Out of stock
Delivery policy
1+ qty
72.60
€
3+ qty
64.80
€
5+ qty
57.30
€
8+ qty
53.30
€
12+ qty
49.40
€
Add to Favorites
Your favourite products
Details
Display
LCD 5999 counts
Range Selection
Manual/Auto
Conductor Ø
40 mm
Continuity Test
YES (buzzer)
Resistance
600/6K/60K/600KOhm (±0.8%), 6M/60MOhm (±2.0%)
Voltage AC
60mV/600mV/6V/60V/600V (±0.6%), 750V (±0.8%)
Voltage DC
60mV/600mV/6V/60V/600V (±0.5%), 1000V (±0.8%)
Current AC
60A/600A/1000A (±2.0%)
Current DC
60/600/1000A (±2.0%)
Capacitance
9.999n~999.99n/9.999uF~999.9uF/9.999mF~99.9mF (±3.0%)
Frequency
99.99Hz~999.9Hz (±1.5%) clamp, 99.99Hz~9.999KHz (±1.5%) V-mode, 9.999Hz~9.999MHz (±0.3%) Hz/Duty-mode
Voltage Detection
Non-contact (NCV)
Min. / Max. Value
YES
Relative mode
REL funcion
Battery Type
9V (6F22)
Accessories
Test leads
Conformity
CE+ETL CAT III 1000V / CAT IV 600V RoHS
