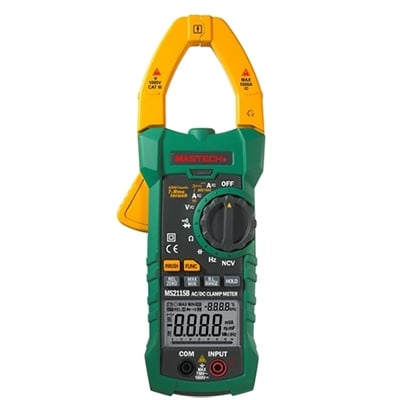

Clamp Meter MS2115B, AC/DC, MASTECH
It.№: 340553
SKU: MS2115B
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 6000 counts
Range Selection
Manual/Auto
Conductor Ø
40 mm
Continuity Test
YES (buzzer)
Resistance
600/6K/60K/600K/6MOhm (±1%), 60MOhm (±1.5%)
Voltage AC
600mV/6V/60V/600V (±0.8%), 750V (±1%)
Voltage DC
600mV/6V/60V/600V (±0.5%), 1000V (±0.8%)
Current AC
60A/600A/1000A (±2.5%)
Current DC
60/600/1000A (±3%)
Capacitance
6n/60n/600n/6u/60u/600u/6mF/60mF (±4.0%)
Frequency
0~10KHz (±1.5%) V-mode/ clamp
Min. / Max. Value
YES
Relative mode
REL funcion
Battery Type
9V (6F22)
Conformity
IEC 1010-1 CAT II 1000V
