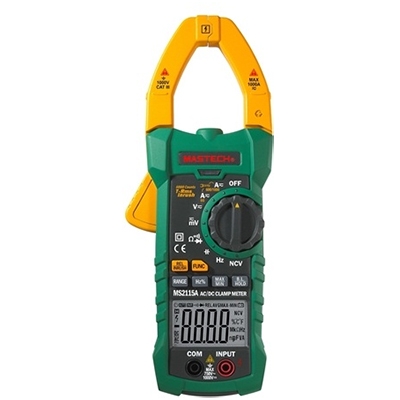

Clamp Meter MS2115A, AC/DC, MASTECH
It.№: 340552
SKU: MS2115A
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 6000 counts
Range Selection
Manual/Auto
Conductor Ø
50 mm
Continuity Test
YES (buzzer)
Resistance
600/6K/60K/600KOhm (±0.8%), 6/60MOhm (±1.2%)
Voltage AC
60V/600mV/6V/60V/600V (±0.8%), 750V (±1%)
Voltage DC
60V/600mV/6V/60V/600V (±0.7%), 1000V (±0.8%)
Current AC
60A/600A/1000A (±2.5%)
Current DC
60/600/1000A (±2.5%)
Capacitance
10n/100n/1000n/10u/100u/1000u/4000uF/10mF/100mF (±4.0%)
Frequency
0~10KHz (±1.5%) V-mode/ clamp
Voltage Detection
Non-contact (NCV)
Min. / Max. Value
YES
Relative mode
REL funcion
Battery Type
9V (6F22)
Conformity
CE CAT III 1000V
