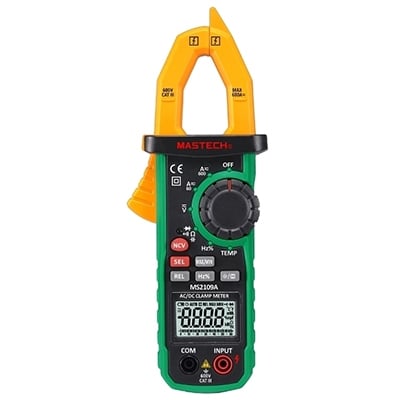

Clamp Meter MS2109A, AC/DC, MASTECH
It.№: 340549
SKU: MS2109A
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 5999 counts
Range Selection
Auto
Continuity Test
YES (buzzer)
Resistance
600/6K/60K/600KOhm (±0.8%), 6/60MOhm (±1.2%)
Voltage AC
6V/60V/600V (±0.8%), 600V (±1.8%)
Voltage DC
600mV/6V/60V/600V (±0.7%) 600V (±0.8%)
Current AC
60A/600A (±2.5%)
Current DC
66/600A (±3.0%)
Capacitance
40n/400n/4u/40u/400u/4000uF (±4.0%)
Frequency
99.9~9.999KHz (±1.5%) V mode, 99.9~999.99Hz (±1.5%) А mode, 9.999Hz~9.999MHz (±0.5%) Hz mode
Temperature
-20~0°C (±3.0%), 1~400°C (±2.0%), 401~1000°C (±2.0%)
Voltage Detection
Non-contact (NCV)
Min. / Max. Value
YES
Relative mode
REL funcion
