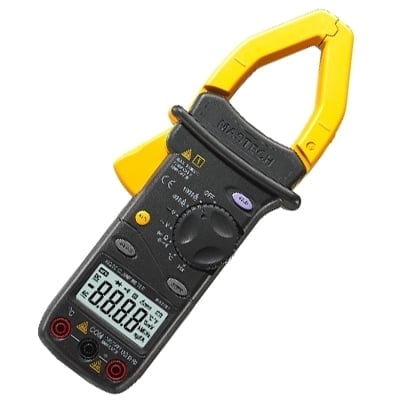

Clamp Meter MS2101, AC/DC, MASTECH
It.№: 340541
SKU: MS2101
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Details
Display
LCD 3999 counts
Range Selection
Auto
Conductor Ø
42 mm
Continuity Test
YES (buzzer)
Resistance
400/4K/40K/400K/4MOhm (±1.2%), 40MOhm (±2.0%)
Voltage AC
4V/40V/400V (±0.8%), 700V (±1.0%)
Voltage DC
400mV/4V/40V/400V (±0.7%), 1000V (±0.8%)
Current AC
400A/1000A (±3.0%)
Current DC
400/1000A (±3.0%)
Capacitance
4n/40n/400n/4u/40uF (±4.0%)
Frequency
40Hz~100KHz (±2.0%)
Temperature
-40~750°C±1.0%
Battery Type
9V (6F22)
Accessories
Test leads, Thermocouple
Conformity
IEC 61010-1 & IEC 61010-2-032, CAT II 1000V, CAT III 600V
