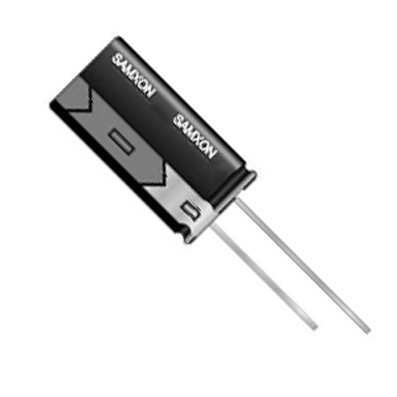

Capacitor 22uF/400V, 105C, KM (12.5x20 mm)
It.№: 122076
SKU: KM22/400
Print
1 from 1
Image is for illustrative purposes only. Please, refer to product description.
Out of stock
Delivery policy
1+ qty
0.40
€
10+ qty
0.337
€
25+ qty
0.291
€
50+ qty
0.25
€
100+ qty
0.238
€
200+ qty
0.227
€
500+ qty
0.215
€
Add to Favorites
Your favourite products
Details
Capacitance
22 µF
Max Voltage
400 VDC
Body Diameter Ø
12.5 mm
Height
30 mm
Operating Temperature
105 °C
Pitch
5 mm
Ripple Current
148 mA
Tolerance
20 %
Capacitive Type
Aluminium Electrolytic
Series
KM
Dissipation Factor
0,24 %
Endurance
2000 hours
Mounting
Through Hole
